Geothermal heat pump cost is usually higher than the price of a conventional air-source heat pump or furnace-and-air-conditioner replacement because the project includes a buried ground loop. That loop may require drilling, trenching, excavation, piping, restoration, and site-specific engineering. For many U.S. homeowners, a complete installed geothermal system can fall roughly in the $20,000 to $45,000 range before incentives, but difficult access, deep drilling, large heating loads, or extensive indoor ductwork changes can push a project higher. The useful way to evaluate geothermal is to compare complete proposals, available tax incentives, projected utility savings, and the expected time you will remain in the home.
A geothermal system moves heat between the home and the stable temperature below ground. The indoor heat pump resembles other central HVAC equipment, but it connects to a water-based ground loop rather than an outdoor condenser exposed to winter cold and summer heat.
That distinction changes the budget. With an air-source heat pump, much of the installation cost is tied to the indoor air handler or furnace, outdoor unit, refrigerant piping, electrical work, and ductwork. With geothermal, the work below and around the property can become the dominant expense.
A complete proposal should separate major scopes of work rather than showing only one lump-sum number. This makes it easier to compare bids and identify exclusions.
The right loop is driven by the lot, soil and rock conditions, available space, local permitting, and contractor capability. It is not simply a matter of choosing the least expensive option. A lower-cost loop layout that is undersized or poorly installed can create comfort problems and reduce the expected operating benefit for decades.
| Loop approach | How it is installed | Cost tendency | Best fit | Important limitation |
|---|---|---|---|---|
| Vertical closed loop | Drilled boreholes with pipe loops placed vertically underground | Often higher upfront cost | Smaller lots, limited open land, established neighborhoods | Drilling conditions, access, and rock can change pricing substantially |
| Horizontal closed loop | Pipe installed in long trenches or excavated fields | Can cost less where digging is easy | Large open lots with usable excavation area | Requires significant land and can disrupt landscaping |
| Pond or lake loop | Coils placed in a suitable body of water | Potentially lower loop cost in the right setting | Properties with an appropriate, permitted water body | Water-body suitability, access, and approvals must be confirmed |
| Open-loop system | Uses groundwater through wells and returns or discharges water as permitted | Highly site dependent | Locations with suitable water supply and local approval | Water quality, well performance, discharge rules, and maintenance risks |
Vertical drilling is frequently chosen when a home lacks the open acreage needed for horizontal trenches. It may be the only practical option on a compact lot, but drilling rigs need access and the subsurface can be unpredictable. Dense rock, difficult drilling conditions, groundwater management, or the need to protect nearby utilities can add cost.
Horizontal loops may be appealing on rural or suburban properties with ample clear land. They can avoid deep drilling, yet excavation is still substantial work. Trees, septic fields, drainage systems, irrigation, retaining walls, and future building plans can limit where trenches can go.
Two geothermal proposals for apparently similar homes can differ for legitimate reasons. One contractor may include the full loop field, electrical work, duct corrections, permits, and landscape restoration, while another may list some of those items as exclusions. Before assuming the lower bid is the better value, compare the scope line by line.

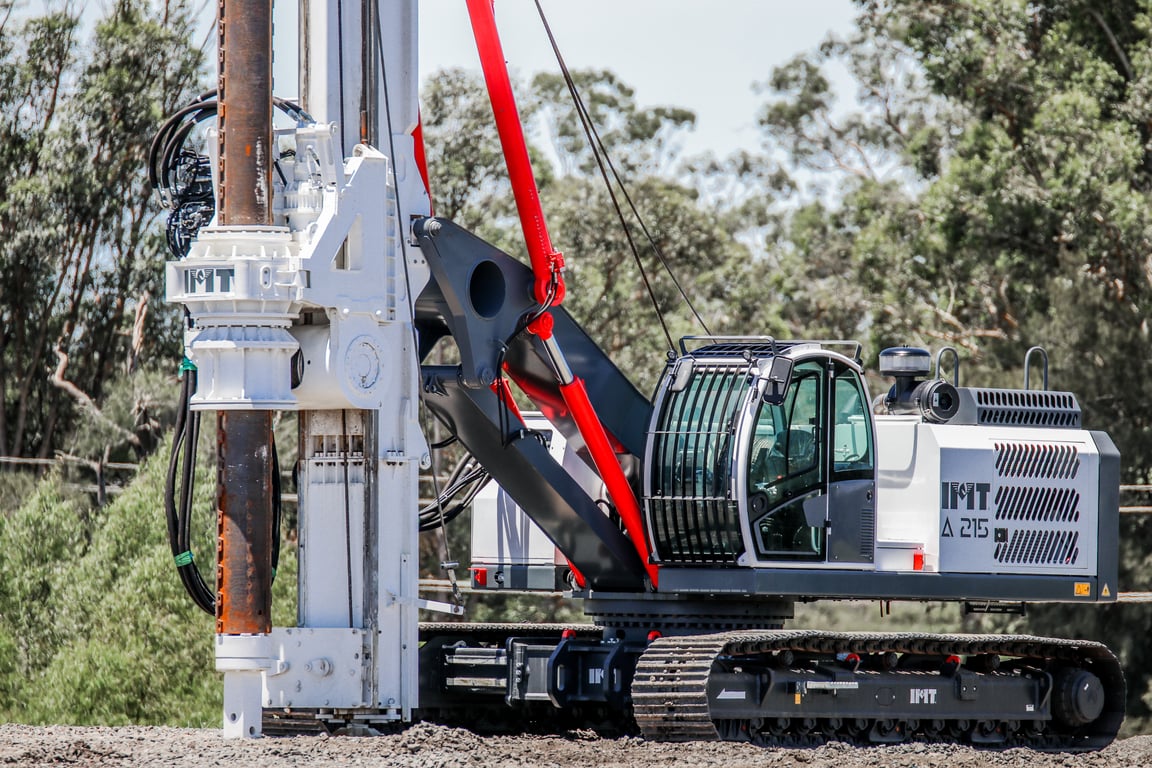

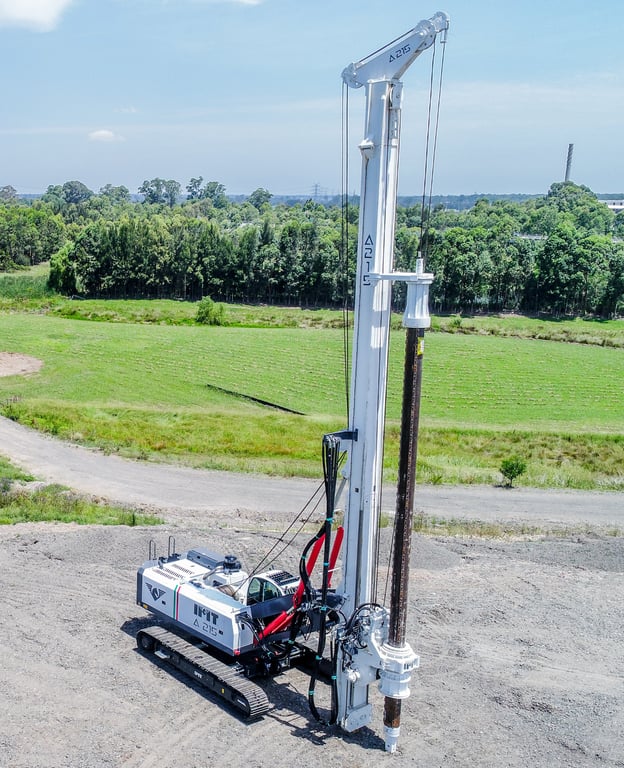

A drilling contractor needs room for equipment, material staging, and safe movement around the lot. Narrow side yards, overhead wires, fences, mature trees, steep grades, and limited street access can affect labor and equipment choices. Conditions below ground also matter: soil, rock, water, and local drilling requirements are not visible from a basic online estimate.
A well-insulated, carefully air-sealed home may need a smaller system and loop field than a drafty home of the same square footage. Window area, insulation levels, sun exposure, ceiling height, basement conditions, and local winter design temperatures all affect sizing. Replacing oversized legacy equipment with another oversized system is not a sound basis for a geothermal budget.
Homes with sound, correctly sized ductwork are usually simpler candidates than homes needing new ducts, major returns, zoning repairs, or air sealing. A geothermal installation in a radiant-floor home may require a different system configuration than one serving forced-air ducts. If the project includes replacing an aging water heater, upgrading an electrical panel, or correcting combustion venting after removing a furnace, those costs should be identified separately.
Ground-loop installation can leave spoil piles, disturbed turf, and access damage. Ask exactly what restoration means in the proposal. Basic grading and seed may be included, while replacement of mature landscaping, irrigation repairs, concrete, pavers, fencing, or specialty plantings may not be.
Requesting at least two detailed site-specific proposals is more useful than collecting many quick estimates. A qualified geothermal contractor should inspect the property, review the existing HVAC system, and develop a load-based design. If a quote is based only on square footage and a brief phone conversation, treat it as an early budget figure rather than a final project price.
The installed price and the net geothermal heat pump cost are not always the same. A homeowner may be eligible for a federal tax credit for qualifying residential clean-energy property, and some utilities, states, municipalities, or electric cooperatives offer additional incentives. Program rules, funding, income requirements, equipment requirements, and installation deadlines can change, so verify the current details before signing a contract.
The federal residential clean energy credit has generally covered a percentage of eligible geothermal heat pump costs for qualifying installations, but homeowners should confirm the current credit rate, eligible expenses, placed-in-service requirements, and tax filing instructions directly with the IRS. A tax credit reduces income tax liability; it is not necessarily a cash rebate paid by the installer.
Ask the contractor to show the pre-incentive contract price and to identify which incentive assumptions are included in its sales presentation. Do not rely on a projected rebate as a discount until you understand who applies, whether funding is available, and whether the homeowner or contractor receives the payment.
Geothermal systems can reduce heating and cooling energy use because they exchange heat with relatively stable ground temperatures rather than very hot or cold outdoor air. The amount saved, however, depends on what the system replaces. Replacing electric resistance heat, propane, fuel oil, or an older inefficient HVAC system may produce a different result than replacing a newer high-efficiency air-source heat pump or natural-gas furnace.
Use a simple decision framework rather than accepting a single payback claim:
A geothermal project often has the strongest case for homeowners planning to stay for many years, particularly where fuel costs are high and the lot can accept an efficiently installed loop. It can be less compelling for a near-term sale, a property with difficult drilling access, or a home that needs inexpensive short-term HVAC replacement. A modern air-source heat pump may be the more practical alternative when the site work makes geothermal disproportionately expensive.
| Situation | Why geothermal may fit | What to verify first |
|---|---|---|
| New construction or a major renovation | Loop installation and HVAC design can be coordinated before landscaping and finishes are complete | Load calculation, loop location, future additions, and builder coordination |
| Long-term owner replacing aging heating and cooling equipment | Higher upfront cost may have time to be offset by operating savings and avoided replacements | Realistic savings assumptions and long-term maintenance responsibilities |
| Home using expensive delivered fuel or electric resistance heat | Potential for a larger reduction in heating expense | Current fuel use, electric rate structure, and backup-heat strategy |
| Large lot with accessible open land | Horizontal loop excavation may be feasible | Septic location, utilities, drainage, trees, and restoration scope |
| Small lot with a qualified drilling contractor available | Vertical loops can work where land area is limited | Rig access, subsurface conditions, permit requirements, and drilling contingencies |
Geothermal is not automatically the premium choice for every home. The system must be designed around the building and property, and the contract needs to account for the work that makes the system different from conventional HVAC. A lower initial price from another heating and cooling option can be the better decision when the homeowner has a short time horizon or the ground loop is unusually difficult to install.
Many complete residential installations are commonly budgeted in the approximate $20,000 to $45,000 range before incentives, but a meaningful estimate requires a site visit and system design. Drilling conditions, loop type, home load, ductwork, electrical upgrades, and restoration can move the final price well outside a broad planning range.
The indoor geothermal equipment is only part of the project. The added cost usually comes from installing the buried loop field, including drilling or excavation, piping, labor, access work, and restoration. An air-source system does not need that underground infrastructure.
Not always. Horizontal loops need substantial open space, but vertical boreholes can serve homes with smaller lots when drilling equipment can access the property. The available area, underground utilities, septic system, landscaping, and local requirements determine what is feasible.
It can if the ducts are in good condition and sized to deliver the required airflow. A contractor should inspect duct leakage, return-air capacity, room balance, and insulation before assuming the existing distribution system is suitable.
The indoor equipment still needs routine HVAC service, including filter changes and periodic checks of airflow, controls, condensate drainage, and loop performance. The buried closed loop is generally intended to be a long-lived component, but its installation quality and warranty terms deserve careful review before purchase.
It may be harder to justify solely through utility savings if you expect to move in the near future. Consider the net installed cost after incentives, the likely appeal to buyers in your market, and whether a less costly high-efficiency air-source heat pump meets your immediate needs.
Geothermal heat pump cost should be evaluated as a property improvement project, not just an HVAC equipment purchase. Start with a load calculation and a detailed loop design, then compare proposals that clearly cover drilling or excavation, indoor work, electrical upgrades, permits, commissioning, and restoration. After confirming current tax-credit and local-incentive rules, weigh the net cost against realistic energy savings and how long you expect to own the home. That approach will show whether geothermal is a durable long-term fit for your property or whether a high-efficiency air-source heat pump is the more sensible investment.
